仕様図
材質：SUS420J2(HRC42～48)

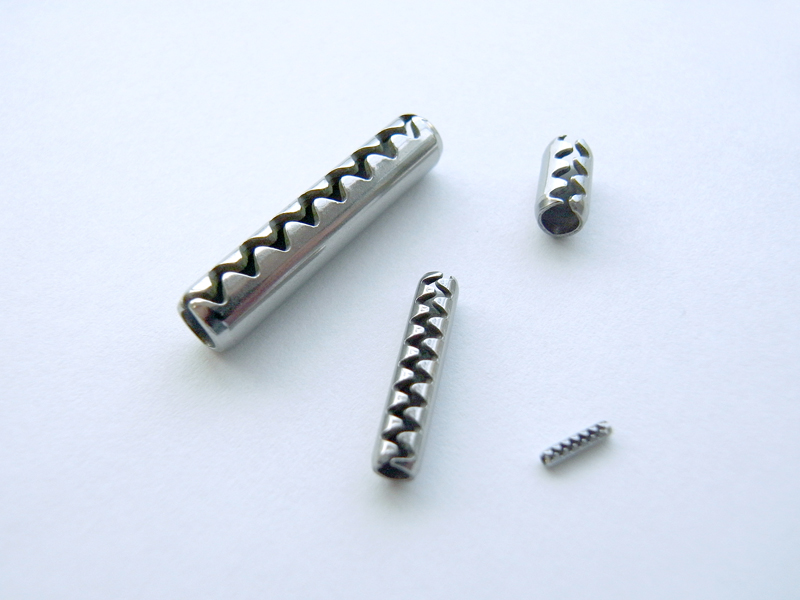

スプリングピン 波形 一覧
絞り込み検索フォーム
製品一覧
検索結果30 件中1-20 件を表示
| 製品番号 | 呼び径 | φD (mm) | t (mm) | L (mm) | 長さLの許容差 | 二重せん断荷重 (kN) | 適応する穴径 mm |
|---|---|---|---|---|---|---|---|
| SPN-1.5x10L | 1.5 | 1.6～1.7 | 0.3 | 10 | ＋0.5/－0 | 1.55 | 1.5 +0.08/-0 |
| SPN-1.5x5L | 1.5 | 1.6～1.7 | 0.3 | 5 | ＋0.5/－0 | 1.55 | 1.5 +0.08/-0 |
| SPN-1.5x7L | 1.5 | 1.6～1.7 | 0.3 | 7 | ＋0.5/－0 | 1.55 | 1.5 +0.08/-0 |
| SPN-1x4L | 1 | 1.1～1.2 | 0.2 | 4 | ＋0.5/－0 | 0.69 | 1 +0.08/-0 |
| SPN-1x5L | 1 | 1.1～1.2 | 0.2 | 5 | ＋0.5/－0 | 0.69 | 1 +0.08/-0 |
| SPN-1x6L | 1 | 1.1～1.2 | 0.2 | 6 | ＋0.5/－0 | 0.69 | 1 +0.08/-0 |
| SPN-1x8L | 1 | 1.1～1.2 | 0.2 | 8 | ＋0.5/－0 | 0.69 | 1 +0.08/-0 |
| SPN-2.5x10L | 2.5 | 2.65～2.75 | 0.5 | 10 | ＋0.5/－0 | 4.31 | 2.5 +0.09/-0 |
| SPN-2.5x12L | 2.5 | 2.65～2.75 | 0.5 | 12 | ＋1/－0 | 4.31 | 2.5 +0.09/-0 |
| SPN-2.5x5L | 2.5 | 2.65～2.75 | 0.5 | 5 | ＋0.5/－0 | 4.31 | 2.5 +0.09/-0 |
| SPN-2.5x7L | 2.5 | 2.65～2.75 | 0.5 | 7 | ＋0.5/－0 | 4.31 | 2.5 +0.09/-0 |
| SPN-2.5x8L | 2.5 | 2.65～2.75 | 0.5 | 8 | ＋0.5/－0 | 4.31 | 2.5 +0.09/-0 |
| SPN-2x12L | 2 | 2.15～2.25 | 0.4 | 12 | ＋1/－0 | 2.76 | 2 +0.09/-0 |
| SPN-2x4L | 2 | 2.15～2.25 | 0.4 | 4 | ＋0.5/－0 | 2.76 | 2 +0.09/-0 |
| SPN-2x6L | 2 | 2.15～2.25 | 0.4 | 6 | ＋0.5/－0 | 2.76 | 2 +0.09/-0 |
| SPN-2x9L | 2 | 2.15～2.25 | 0.4 | 9 | ＋0.5/－0 | 2.76 | 2 +0.09/-0 |
| SPN-3x10L | 3 | 3.15～3.25 | 0.6 | 10 | ＋0.5/－0 | 6.2 | 3 +0.09/-0 |
| SPN-3x12L | 3 | 3.15～3.25 | 0.6 | 12 | ＋1/－0 | 6.2 | 3 +0.09/-0 |
| SPN-3x15L | 3 | 3.15～3.25 | 0.6 | 15 | ＋1/－0 | 6.2 | 3 +0.09/-0 |
| SPN-3x7L | 3 | 3.15～3.25 | 0.6 | 7 | ＋0.5/－0 | 6.2 | 3 +0.09/-0 |
