仕様図
材質：SUS420J2(HRC42～48)

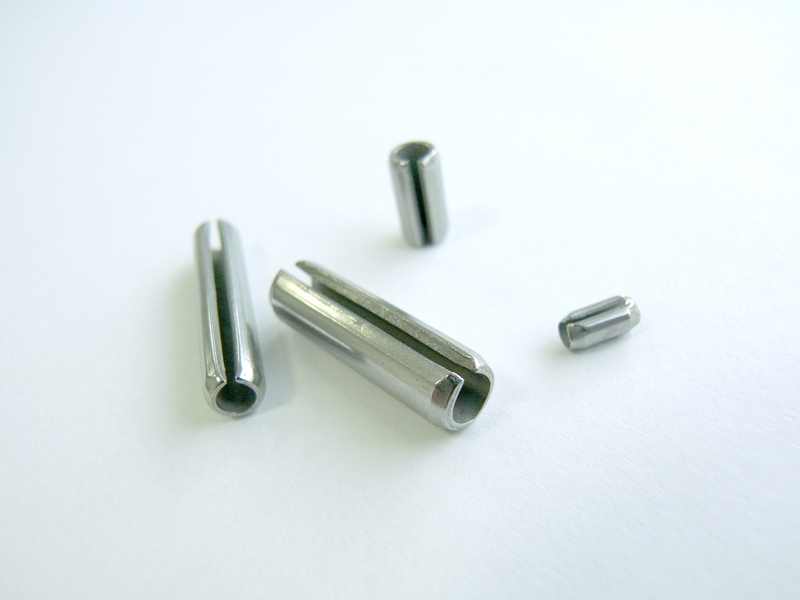

スプリングピン ストレート形 一覧
絞り込み検索フォーム
製品一覧
検索結果22 件中1-20 件を表示
| 製品番号 | 呼び径 | φD (mm) | t (mm) | L (mm) | 長さLの許容差 | 二重せん断荷重 (kN) | 適応する穴径 mm |
|---|---|---|---|---|---|---|---|
| SPS-1.5x4L | 1.5 | 1.6～1.7 | 0.3 | 4 | ＋0.5/－0 | 1.55 | 1.5 +0.08/-0 |
| SPS-1.5x5L | 1.5 | 1.6～1.7 | 0.3 | 5 | ＋0.5/－0 | 1.55 | 1.5 +0.08/-0 |
| SPS-1.5x6L | 1.5 | 1.6～1.7 | 0.3 | 6 | ＋0.5/－0 | 1.55 | 1.5 +0.08/-0 |
| SPS-1.5x7L | 1.5 | 1.6～1.7 | 0.3 | 7 | ＋0.5/－0 | 1.55 | 1.5 +0.08/-0 |
| SPS-1x5L | 1 | 1.1～1.2 | 0.2 | 5 | ＋0.5/－0 | 0.69 | 1 +0.08/-0 |
| SPS-1x8L | 1 | 1.1～1.2 | 0.2 | 8 | ＋0.5/－0 | 0.69 | 1 +0.08/-0 |
| SPS-2.5x12L | 2.5 | 2.65～2.75 | 0.6 | 12 | ＋1/－0 | 4.31 | 2.5 +0.09/-0 |
| SPS-2.5x14L | 2.5 | 2.65～2.75 | 0.6 | 14 | ＋1/－0 | 4.31 | 2.5 +0.09/-0 |
| SPS-2.5x5L | 2.5 | 2.65～2.75 | 0.6 | 5 | ＋0.5/－0 | 4.31 | 2.5 +0.09/-0 |
| SPS-2.5x8L | 2.5 | 2.65～2.75 | 0.6 | 8 | ＋0.5/－0 | 4.31 | 2.5 +0.09/-0 |
| SPS-2x8L | 2 | 2.15～2.25 | 0.4 | 8 | ＋0.5/－0 | 2.76 | 2 +0.09/-0 |
| SPS-3x10L | 3 | 3.15～3.25 | 0.6 | 10 | ＋0.5/－0 | 6.2 | 3 +0.09/-0 |
| SPS-3x12L | 3 | 3.15～3.25 | 0.6 | 12 | ＋1/－0 | 6.2 | 3 +0.09/-0 |
| SPS-3x16L | 3 | 3.15～3.25 | 0.6 | 16 | ＋1/－0 | 6.2 | 3 +0.09/-0 |
| SPS-3x6L | 3 | 3.15～3.25 | 0.6 | 6 | ＋0.5/－0 | 6.2 | 3 +0.09/-0 |
| SPS-4x12L | 4 | 4.2～4.4 | 0.8 | 12 | ＋1/－0 | 10.8 | 4 +0.12/-0 |
| SPS-4x16L | 4 | 4.2～4.4 | 0.8 | 16 | ＋1/－0 | 10.8 | 4 +0.12/-0 |
| SPS-4x21L | 4 | 4.2～4.4 | 0.8 | 21 | ＋1/－0 | 10.8 | 4 +0.12/-0 |
| SPS-4x8L | 4 | 4.2～4.4 | 0.8 | 8 | ＋0.5/－0 | 10.8 | 4 +0.12/-0 |
| SPS-5x10L | 5 | 5.2～5.4 | 1 | 10 | ＋0.5/－0 | 17.25 | 5 +0.12/-0 |
